Process equipment refers to a broad range of machinery, tools, systems, and components specifically designed to assist in industrial manufacturing and processing operations. These machines perform critical actions such as producing, mixing, separating, heating, cooling, transporting, or storing materials whether they are raw ingredients, intermediates, or final products.
In pharmaceutical industries like Brinda Pharma Technologies, process equipment plays an even more crucial role because pharmaceutical production demands high precision, strict hygiene, consistent product quality, and compliance with regulatory standards such as GMP (Good Manufacturing Practice), USFDA, and WHO guidelines.
Brinda Pharma Technologies specializes in providing pharmaceutical process equipment, which typically includes:
Brinda Pharma Technologies offers customized and standard process equipment solutions that are mainly used in pharmaceutical production but can also serve biotech, chemical, and healthcare industries.

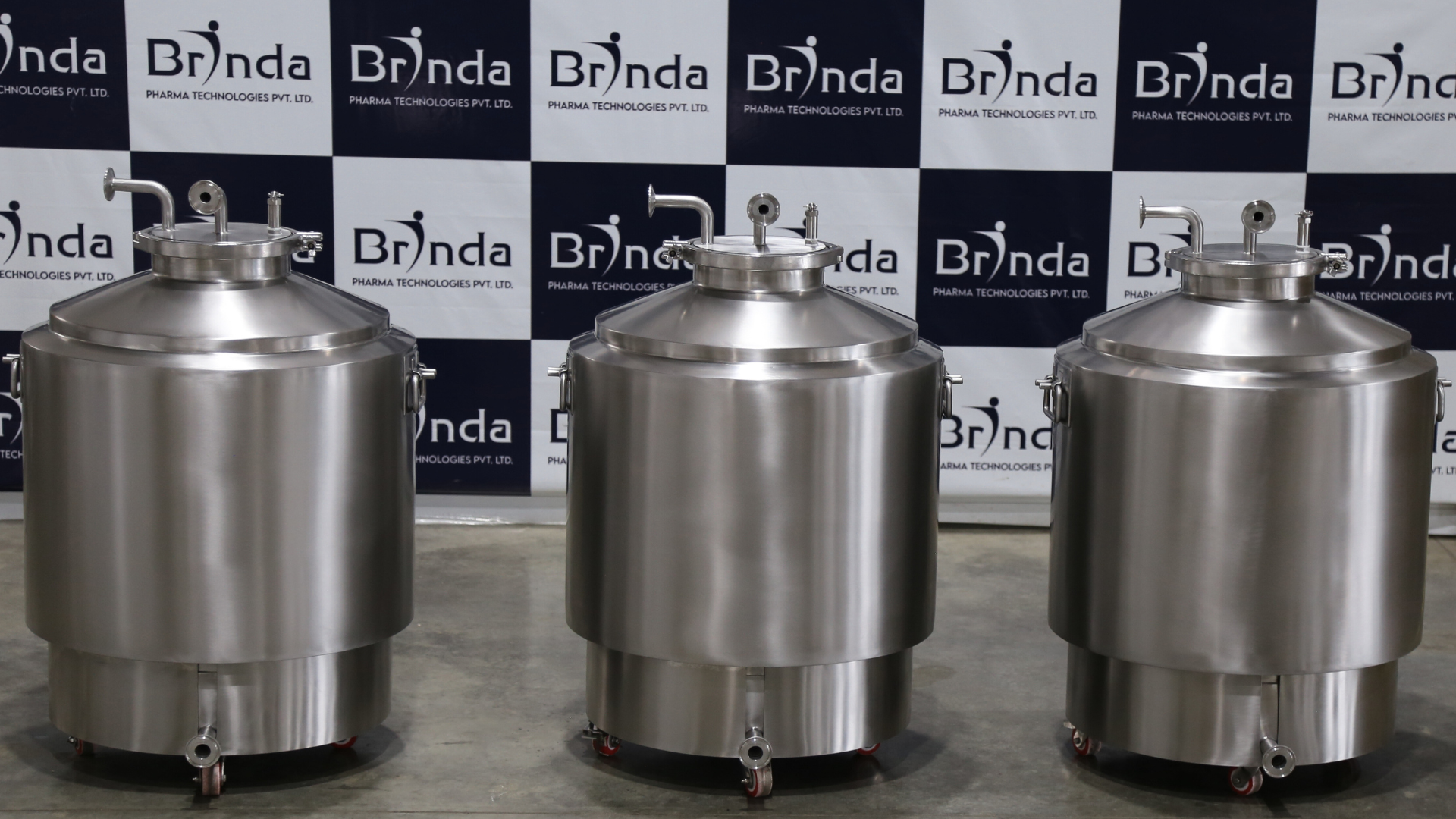

A Sterile Manufacturing Vessel is a specialized, high-grade stainless-steel container used for the preparation, storage, and transfer of pharmaceutical and biotech products under aseptic (sterile) conditions.
At Brinda Pharma Technologies, these vessels are engineered to meet the most stringent requirements for sterile manufacturing environments, ensuring absolute hygiene, contamination control, and regulatory compliance.
They are critical equipment in the production of injectable solutions, vaccines, IV fluids, ophthalmic products, and other sterile pharmaceutical formulations.
Parameter | Details |
Capacity Range | 10 Liters to 20,000 Liters (customizable) |
Material of Construction (MOC) | Internal: SS316L / External: SS304 |
Surface Finish Internal | Mirror polished, Ra ≤ 0.3 to 0.5 microns |
Surface Finish External | Matt finish or as per client requirement |
Design Pressure | Up to 4 bar (g) (can be customized) |
Working Pressure | 1 to 3 bar (as per process needs) |
Operating Temperature | -20°C to +150°C |
Jacket Type | Full jacket / Limpet coil / Dimple jacket |
Insulation | Mineral wool or PU foam insulation with SS304 cladding |
Sterilization Capability | CIP (Clean-in-Place) / SIP (Sterilize-in-Place) |
Agitation System | Top or bottom-mounted agitator (optional) |
Seal Type | Mechanical Seal / Magnetic Drive Seal (for sterile conditions) |
Manhole | Hinged or detachable with sterile design |
Instrumentation | Pressure gauge, Temperature sensor (PT-100), Level transmitter, Sterile vent filters |
Automation Option | Manual / Semi-automatic / Fully automatic with PLC-SCADA system |
Compliance Standards | GMP, WHO, USFDA, ASME BPE |
Documentation Provided | DQ, IQ, OQ, PQ, FAT, SAT |
Customized Engineering Solutions: Brinda Pharma Technologies can customize the vessel design based on the client’s process needs, facility layout, and regulatory requirements.
Equipment Enhancements: Magnetic agitators, load cells, clean-room compatible designs, and specialized control panels are available upon request.
